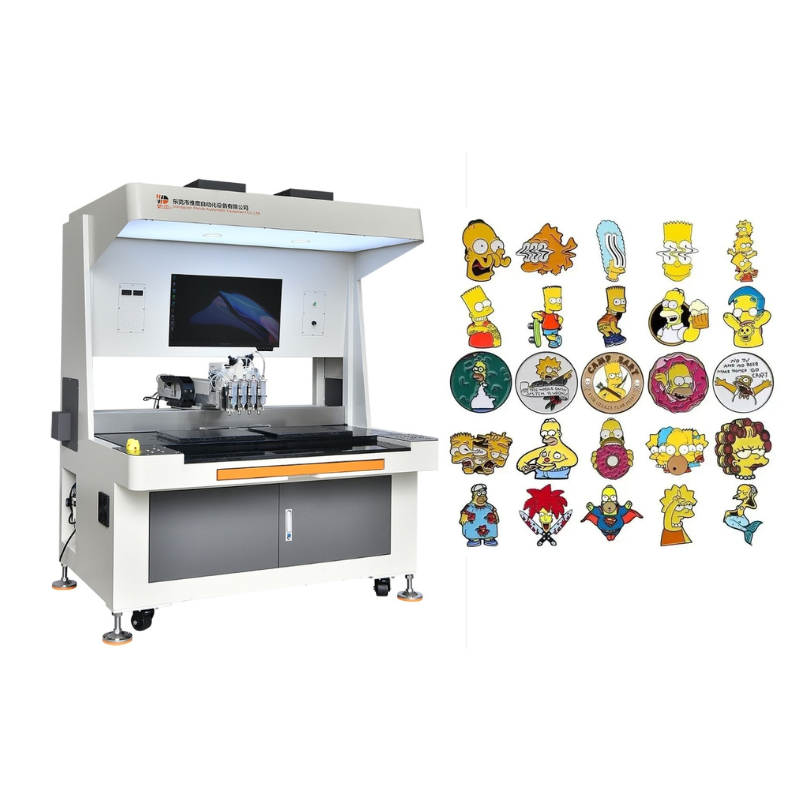

Enamel Pin Badge Filling Machine Introduction

The Weldo Automatic Enamel Pin Badge Filling Machine features a multi-line precision point demand design, integrating high-precision visual positioning and intelligent calculation. It efficiently completes mark point lacquering, electronic sealing, enamel drop, five-metal overlay, and other processes.

This machine requires no jig, automatically adjusts construction angle and position, and supports non-standardized processes. It is compatible with 30+ types of fluids (such as UV, AB, electric, etc.), significantly improving production efficiency, product quality rate, and operational efficiency for supporting enterprises.

Enamel Pin Badge Filling Machine Parameters

Model: WD600-FV4

Run Distance: X: 680mm*Y: 360mm*Z: 50mm

Working Size: 400 × 300mm

Working Speed: 60m/min

Position Accuracy: ±0.02mm

Dispensing Precision: 0.001ml

Transition: Screw balling and linear

Servo Motor: AC servo motor & driver

Input Voltage: 220V ±10%, 50Hz

Maximum Frequency of Injection Valve: 250Hz/s

Machine Size: 1340(L) × 1250(W) × 1950(H) mm

Packing Size: 1450(L) × 1400(W) × 2150(H) mm

Enamel Pin Badge Filling Machine Advantages & Benefits

Multi-line precision point demand design

High-precision visual positioning & intelligent calculation

No jig required, automatic angle & position adjustment

Supports non-standardized processes

Compatible with 30+ fluid types (UV, AB, electric, etc.)

Enhances production efficiency & product quality rate

Boosts operational efficiency for supporting enterprises

High-Precision Vision Positioning, No Fixtures Required

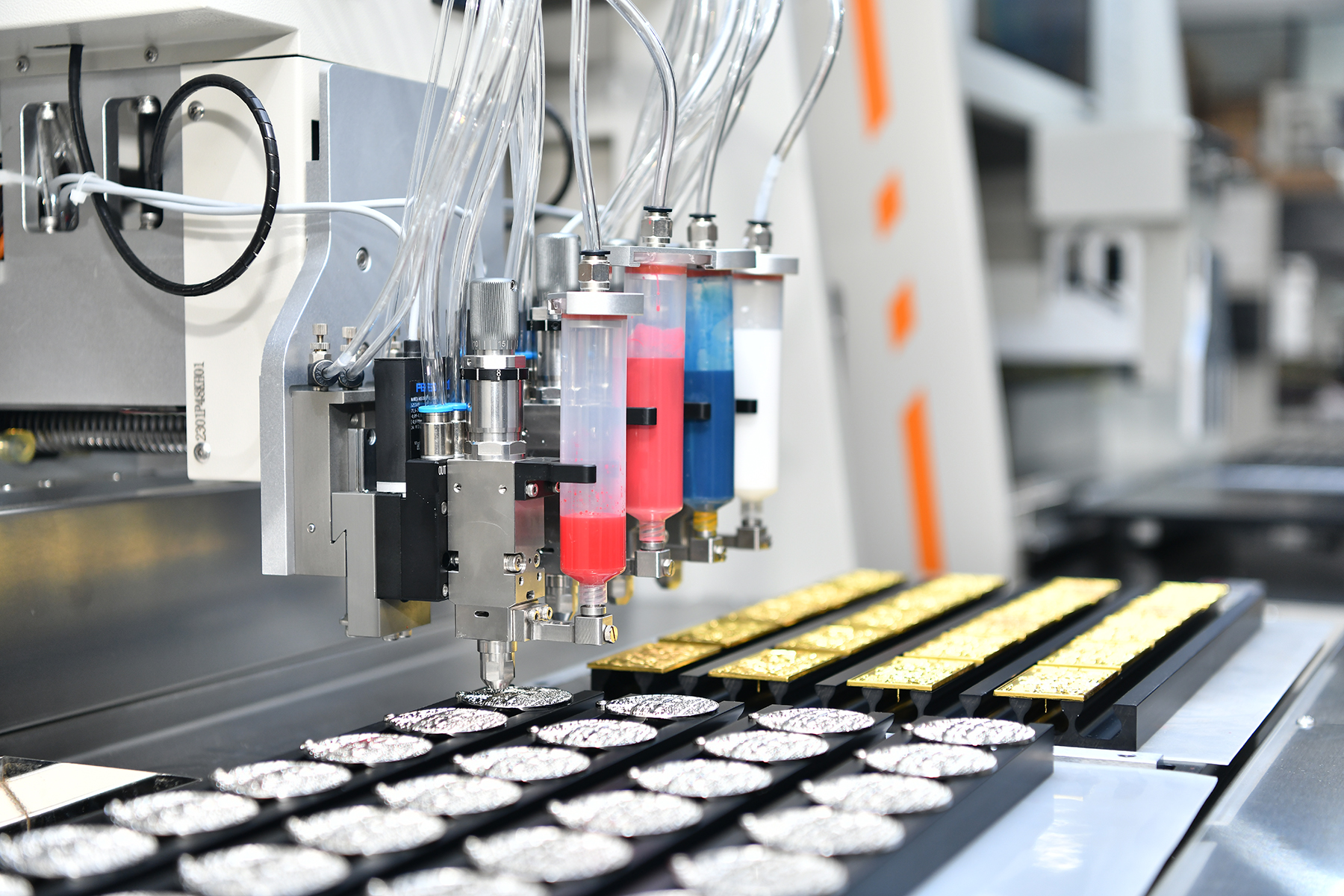

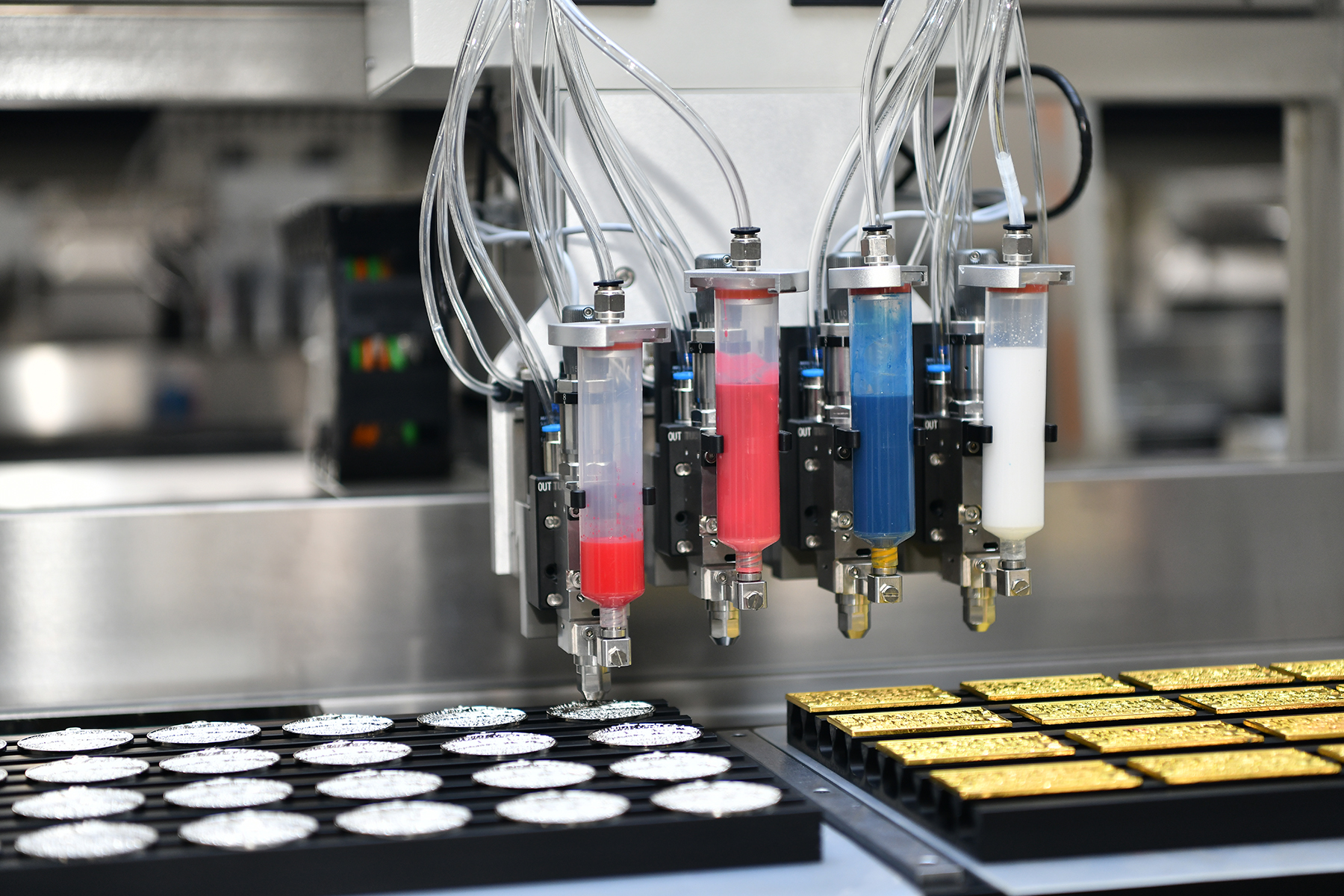

Advanced vision system automatically detects workpiece angle and position deviation, with real-time tracking and correction to ensure pinpoint accuracy in dispensing/coloring. Even complex irregular shapes can be processed flawlessly, significantly reducing manual alignment costs.

Smart Defect Detection, Zero Misprocessing

Equipped with an upgraded AI vision algorithm, it automatically identifies surface defects (e.g., stains, deformations) and intelligently skips faulty areas, reducing material waste and defect rates by over 90%.

One-Click Automatic Programming, Doubled Efficiency

Optional intelligent path-planning software allows automatic generation of optimal dispensing paths simply by importing design files. Programming time is reduced from hours to minutes, making it ideal for high-mix, low-volume flexible production.

Ultra-Stable, One Operator for Multiple Machines

Industrial-grade servo systems and modular design ensure 24/7 continuous operation. A single operator can easily manage four machines, cutting labor costs by 75% while tripling production capacity.

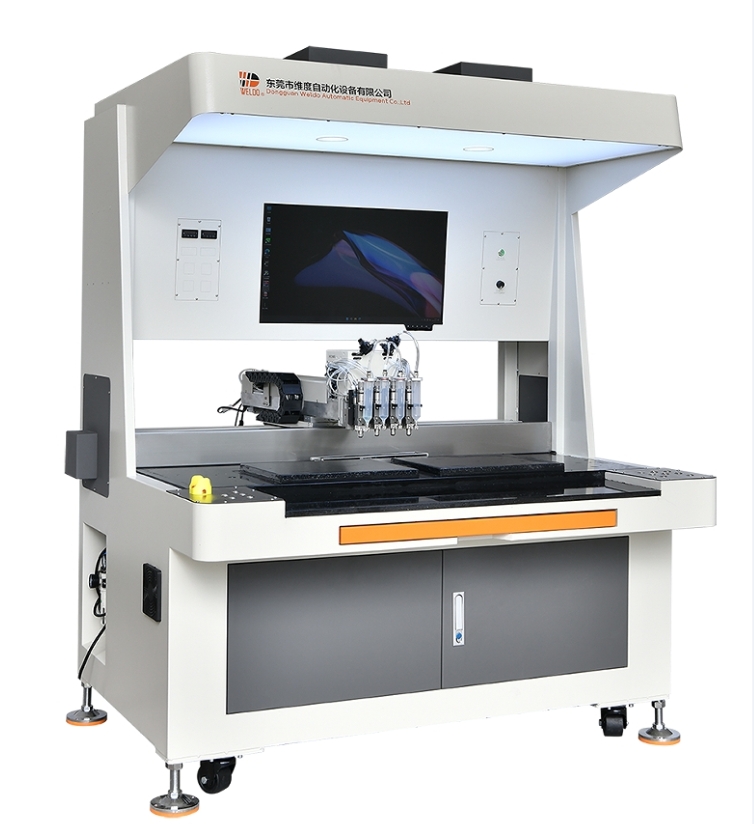

High Quality Machine Body

One-piece cast iron body, high rigidity, ultra-stable, not easy to deform, ensuring stability and precision for long-term use.

Industry Pain Points Solved

✔ Replaces Manual Coloring – Eliminates uneven coating and low efficiency

✔ Compatible with Diverse Workpieces – Perfect coverage for badges with curved surfaces or hardware with sharp edges

✔ Fast Changeover – Switch to new workpiece parameters in under 5 minutes, handling urgent orders with ease

Enamel Pin Badge Filling Machine Applications

Badge/logo color filling • Hardware component coloring • Metal sign epoxy dispensing • Craft & gift decoration• Marking Paint Spotting • Label Glue Dripping • Handbag Accessory Glue Stripping • Brooch Epoxy Dispensing • Gear Knob Paint Spotting • Plate Cover Paint Spotting • Brush Glue Filling • Jewelry Glue Dispensing • Electronic Potting • Dingdao Sealing • AB Glue Sealing • Capacitor Encapsulation • Zipper Pull Coloring • Logo Coloring

Why Choose Weldo Automatic Enamel Pin Badge Filling Machine

Fast Delivery：7 day sample trial, 15-day standard delivery
Worry-Free After-Sale：Free operator training + 1-year warranty
Custom Solutions：Support for specialized process development

Professional R&D Team: Over 15 years R&D experience in gold machinery with a top engineer team supported

High precision & high quality: Optimized specifically for enamel badge production, ensuring uniform filling without bubbles or overflow, better production, guaranteed filling, no bubbles, no overflow.

Customized Service: Adjust machine configuration to meet diverse production specifications.

High Precision, Ultra-Stability: Our independently developed highly intelligent dispensing system intelligently identifies and optimizes the dispensing path, enabling highly intelligent, high-speed, high-yield, and highly automated processing.

Software System: User-friendly operating interface, easy to operate and navigate.

Supports Chinese/English language switch to meet different user language requirements.

Equipped with an in-house developed industrial-grade motion control system, which is feature-rich and enables precise monitoring of various process parameters
