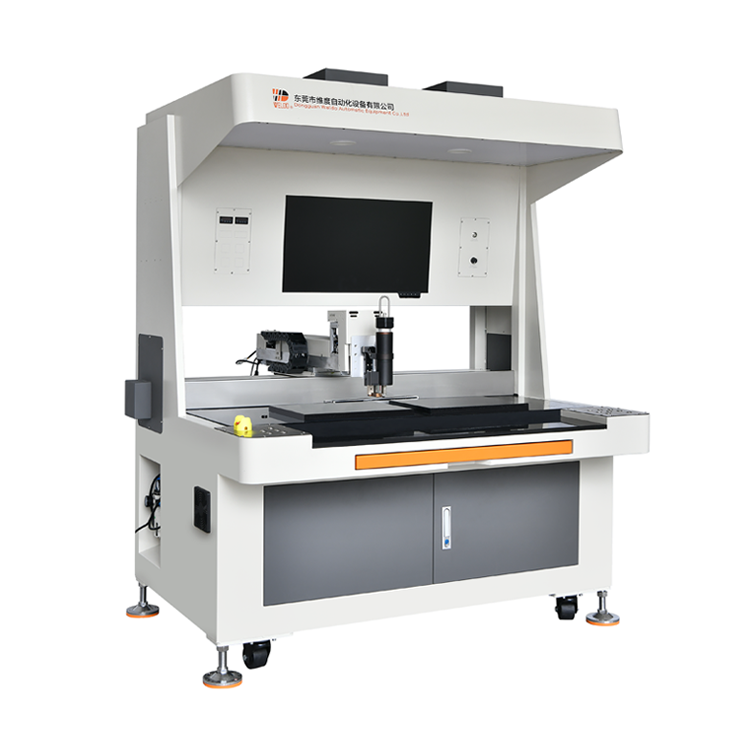

This product uses visual technology, AI algorithm and high-precision glue spraying system to accurately spray glue on the lower edge of false eyelashes. The double-station production capacity is 4,000 per hour. The upper and lower eyelashes and transparent stem eyelashes can be accurately identified and glued.

Product DescriptionFeatures:

1. Adopting high-precision visual positioning system, no precision fixture is required, and glue dispensing is completed accurately.

2. Dual-station dual vision can process 2 different products at the same time and work in a cycle.

3. Using highly adaptive AI algorithm, it has strong scalability. The upper and lower eyelashes and transparent stem eyelashes can be accurately identified and glued.

4. Equipped with hot melt glue valve or piezoelectric glue spray valve, it can achieve fast, accurate and continuous glue dispensing at a temperature of 150-200 degrees.

5.Technical parameters:

Model: WD600-VF4

Distance: X: 680mm Y: 360mm Z: 50mm

Worktable size: 300*300mm

Working speed: 60m/min

Positioning accuracy: ±0.02mm

Dispensing precision: 0.001ml

Transition: Screw balling and linear

Servo motor: AC servo motor & driver

Input voltage: 220V±10% 50Hz

Maximum frequency of injection valve: 250HZ/s

Machine size: 1340 (L) * 1250 (W) * 1950 (H) mm

Packing size: 1450 (L) * 1400 (W) * 2150 (H) mm
